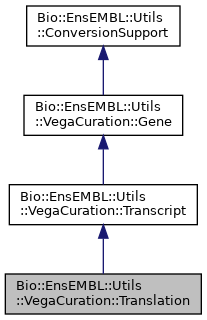

Inheritance diagram for Bio::EnsEMBL::Utils::VegaCuration::Translation:

Public Member Functions
public Hashref	check_CDS_start_end_remarks ()

public Hashref	check_CDS_start_end_remarks_loutre ()

public Hashref	get_havana_seleno_comments ()

public	check_for_stops ()

protected	_save_log ()

Public Member Functions inherited from Bio::EnsEMBL::Utils::VegaCuration::Transcript
public Array	find_non_overlaps ()

public Boolean	check_remarks_and_update_names ()

public void	check_names_and_overlap ()

public Hashref	get_havana_fragmented_loci_comments ()

Public Member Functions inherited from Bio::EnsEMBL::Utils::VegaCuration::Gene
public Int	find_gaps ()

Public Member Functions inherited from Bio::EnsEMBL::Utils::ConversionSupport
public Bio::EnsEMBL::Utils::ConversionSupport	new ()

public Boolean	parse_common_options ()

public Boolean	parse_extra_options ()

public Array	allowed_params ()

public Array	get_common_params ()

public Array	get_loutre_params ()

public Array	get_annotrack_params ()

public void	remove_vega_params ()

public Boolean	confirm_params ()

public String	list_all_params ()

public String	create_commandline_options ()

public Boolean	check_required_params ()

public Boolean	user_proceed ()

public String	read_user_input ()

public Boolean	comma_to_list ()

public Boolean	list_or_file ()

public Scalar	param ()

public String	error ()

public Int	warnings ()

public String	serverroot ()

public DBAdaptor	get_database ()

public DBI	get_dbconnection ()

public Bio::EnsEMBL::DBSQL::DBAdaptor	dba ()

public Boolean	dynamic_use ()

public Hashref	get_chrlength ()

public Hashref	get_ensembl_chr_mapping ()

public Int	get_taxonomy_id ()

public String	get_species_scientific_name ()

public String	species ()

public List	sort_chromosomes ()

protected Values	_by_chr_num ()

public Hashref	split_chromosomes_by_size ()

public Boolean	is_patch ()

public Boolean	log ()

public	lock_log ()

public	unlock_log ()

public Boolean	log_warning ()

public void	log_error ()

public Boolean	log_verbose ()

public Boolean	log_stamped ()

public Filehandle	log_filehandle ()

public Filehandle	filehandle ()

public Filehandle	init_log_date ()

public Filehandle	init_log ()

public Boolean	finish_log ()

public String	date_and_mem ()

public String	date ()

public String	date_and_time ()

public	date_format ()

public String	mem ()

public A	commify ()

public Arrayref	fetch_non_hidden_slices ()

public Arrayref	get_non_hidden_slice_names ()

public Arrayref	get_wanted_chromosomes ()

public Boolean	is_haplotype ()

public Arrayref	get_unique_genes ()

public	get_attrib_values ()

public Arrayref	fix_attrib_value ()

protected Attrib_type	_get_attrib_id ()

public Array_ref	store_new_attribute ()

public Array_ref	update_attribute ()

public void	remove_duplicate_attribs ()

public	save_seq ()

public String	get_alignment ()

public	allowed_duplicate_regions ()

Detailed Description

Synopsis

Description

Definition at line 12 of file Translation.pm.

Member Function Documentation

◆ _save_log()

protected Bio::EnsEMBL::Utils::VegaCuration::Translation::_save_log ( )

Undocumented method

Code:

click to view

◆ check_CDS_start_end_remarks()

public Hashref Bio::EnsEMBL::Utils::VegaCuration::Translation::check_CDS_start_end_remarks ( )

   Args       : B::E::Transcript
   Example    :

my $results = $support->check_CDS_end_remarks($transcript)

   Description: identifies incorrect 'CDS end...' transcript remarks in a
                otter-derived Vega database
   Returntype : hashref

Code:

click to view

◆ check_CDS_start_end_remarks_loutre()

public Hashref Bio::EnsEMBL::Utils::VegaCuration::Translation::check_CDS_start_end_remarks_loutre ( )

   Args       : B::E::Transcript
   Example    :

my $results = $support->check_CDS_end_remarks($transcript)

   Description: identifies incorrect 'CDS end...' transcript attribs in a loutre
                of a loutre-derived Vega database.
   Returntype : hashref

Code:

click to view

sub check_CDS_start_end_remarks_loutre {
  my $self = shift;
  my $trans = shift;

  # info for checking
  my @stops = qw(TGA TAA TAG);
  my %attributes;
  foreach my $attribute (@{$trans->get_all_Attributes()}) {
    push @{$attributes{$attribute->code}}, $attribute;
  }
#  warn $trans->stable_id;
#  warn Data::Dumper::Dumper(\%attributes);
  my $coding_end   = $trans->cdna_coding_end;
  my $coding_start = $trans->cdna_coding_start;
  my $trans_end    = $trans->length;
  my $trans_seq    = $trans->seq->seq;
  my $stop_codon_offset = 3 + $trans->translation->end_Exon->end_phase;
  my $initial_exon_phase = $trans->translation->start_Exon->phase;
  my $stop_codon   = substr($trans_seq, $coding_end-3, 3);
  my $start_codon  = substr($trans_seq, $coding_start-1, 3);

  my $start_codon_incorrect = 1;
  if ($start_codon eq 'ATG' ) {
    $start_codon_incorrect = 0;
  }
  elsif ($start_codon eq 'CTG') {
    foreach my $attrib (@{$attributes{'remark'}}) {
      if ($attrib->value =~ /non[- ]ATG start/) {
    $start_codon_incorrect = 0;
      }
    }
  }

#  warn "$start_codon -- $initial_exon_phase -- $coding_start -- $start_codon_incorrect";

  #hashref to return results
  my $results;

  #extra CDS end not found remarks
  if ($attributes{'cds_end_NF'}) {
    if ( ($attributes{'cds_end_NF'}->[0]->value == 1)
       && ($coding_end != $trans_end)
       && ( grep {$_ eq $stop_codon} @stops) ) {
#      warn $trans->stable_id.": $coding_end--$trans_end--$stop_codon";
#      warn $trans->translation->end_Exon->end_phase;
      $results->{'END_EXTRA'} = $stop_codon;
    }
  }
  #missing CDS end not found remark
  if ( $coding_end == $trans_end ) {
    if ($attributes{'cds_end_NF'}) {
      if ($attributes{'cds_end_NF'}->[0]->value == 0 ) {
    if (! grep {$_ eq $stop_codon} @stops) {
#     warn $trans->translation->end_Exon->end_phase;
      $results->{'END_MISSING'}{'WRONG'} = $stop_codon;
    }
      }
    }
    elsif (! grep {$_ eq $stop_codon} @stops) {
      $results->{'END_MISSING'}{'ABSENT'} = $stop_codon;
    }
  }
  #extra CDS start not found remark
  if ( $attributes{'cds_start_NF'}) {
    if (   ($attributes{'cds_start_NF'}->[0]->value == 1 )
        && (! $start_codon_incorrect)) {
      unless ( ($coding_start == 1) && ( $initial_exon_phase > 0)) {
    $results->{'START_EXTRA'} = $start_codon;
      }
    }
  }
  #missing CDS start not found remark
  if ( $coding_start == 1) {
    if ( $attributes{'cds_start_NF'} ) {
      if ( $attributes{'cds_start_NF'}->[0]->value == 0 ) {
    if ($start_codon_incorrect) {
      $results->{'START_MISSING'}{'ABSENT'} = $start_codon;
    }
    elsif ($initial_exon_phase > 0) {
      $results->{'START_MISSING'}{'INITIAL_PHASE'} = $initial_exon_phase;
    }
      }
    }
    elsif ($start_codon ne 'ATG') {
      $results->{'START_MISSING'}{'ABSENT'} = $start_codon;
    }

  }
  return $results;
}

◆ check_for_stops()

public Bio::EnsEMBL::Utils::VegaCuration::Translation::check_for_stops ( )

Undocumented method

Code:

click to view

sub check_for_stops {
  my $support = shift;
  my ($gene,$seen_transcripts,$log_object) = @_;
  my $transcripts;
  my $has_log_object=defined($log_object);
  if($has_log_object){
    my @help = $log_object->species_params->get_trans($gene->stable_id);
    $transcripts=\@help;
  }else{
    $log_object=$support;
    $transcripts=$gene->get_all_Transcripts;
  }

  my $gname = $gene->get_all_Attributes('name')->[0]->value;
  my $gsi = $gene->stable_id;
  my $scodon = 'TGA';
  my $mod_date = $support->date_format( $gene->modified_date,'%d/%m/%y' );
  my $hidden_remak_ttributes;
 TRANS:
  foreach my $trans (@$transcripts) {
    my $tsi = $trans->stable_id;
    my $tID = $trans->dbID;
    my $tname = $trans->get_all_Attributes('name')->[0]->value;
    if($has_log_object){
      $hidden_remak_ttributes=$log_object->species_params->get_attributes->{$tsi}->{'hidden_remark'};
    }else{
      $hidden_remak_ttributes=$trans->get_all_Attributes('hidden_remark');
    }
    foreach my $rem (@$hidden_remak_ttributes) {
      if ($rem->value =~ /not_for_Vega/) {
        #$support->log_verbose("Skipping transcript $tname ($tsi) since 'not_for_Vega'\n",1);
        $log_object->_save_log('log_verbose', '', $gsi, '', $tsi, '', "Skipping transcript $tname ($tsi) since 'not_for_Vega'");
        next TRANS;
      }
    }

    # go no further if there is a ribosomal framshift attribute
    foreach my $attrib (@{$trans->get_all_Attributes('_rib_frameshift')}) {
      if ($attrib->value) {
        $log_object->_save_log('log', '', $gsi, '', $tsi, '', "Skipping $tsi ($tname) since it has a ribosomal frameshift attribute");
        next TRANS;
      }
    }
    foreach my $attrib (@{$trans->get_all_Attributes('hidden_remark')}) {
      if ($attrib->value eq 'ribosomal_frameshift') {
        $log_object->_save_log('log', '', $gsi, '', $tsi, '', "Skipping $tsi ($tname) since it has a ribosomal frameshift hidden_remark");
        next TRANS;
      }
    }

    #$support->log_verbose("Studying transcript $tsi ($tname, $tID)\n",1);
    $log_object->_save_log('log_verbose', '', $gsi, '', $tsi, '', "Studying transcript $tsi ($tname, $tID)");
    my $peptide;

    # go no further if the transcript doesn't translate or if there are no stops
    next TRANS unless ($peptide = $trans->translate);
    my $pseq = $peptide->seq;
    my $orig_seq = $pseq;
    # (translate method trims stops from sequence end)

    next TRANS unless ($pseq =~ /\*/);
    next TRANS if ($trans->biotype eq 'polymorphic_pseudogene' or
                   $trans->biotype =~ /processed_pseudogene$/);

    # warn sprintf("Stop codon is '%s'\n",substr($trans->translateable_seq,-3));
    #$support->log_verbose("Stops found in $tsi ($tname)\n",1);
    $log_object->_save_log('log_verbose', '', $gsi, '', $tsi, '', "Stops found in $tsi ($tname)");

    # find out where and how many stops there are
    my @found_stops;
    my $mrna   = $trans->translateable_seq;
    my $offset = 0;
    my $tstop;
    while ($pseq =~ /^([^\*]*)\*(.*)/) {
      my $pseq1_f = $1;
      $pseq = $2;
      my $seq_flag = 0;
      $offset += length($pseq1_f) * 3;
      my $stop = substr($mrna, $offset, 3);
      my $aaoffset = int($offset / 3)+1;
      push(@found_stops, [ $stop, $aaoffset ]);
      $tstop .= "$aaoffset ";
      $offset += 3;
    }

    # are all stops TGA...?
    my $num_stops = scalar(@found_stops);
    my $num_tga = 0;
    my $positions;
    foreach my $stop (@found_stops) {
      $positions .= $stop->[0]."(".$stop->[1].") ";
      if ($stop->[0] eq $scodon) {
    $num_tga++;
      }
    }
    my $source = $gene->source;
    #...no - an internal stop codon error in the database...
    if ($num_tga < $num_stops) {
      if ($source eq 'havana') {
        #$support->log_warning("INTERNAL STOPS HAVANA: Transcript $tsi ($tname) from gene $gname has non \'$scodon\' stop codons [$mod_date]:\nSequence = $orig_seq\nStops at $positions)\n\n");
        $log_object->_save_log('log_warning', '', $gsi, 'TRANSCRIPT', $tsi, 'VQCT_internal_stop', "INTERNAL STOPS HAVANA: Transcript $tsi ($tname) from gene $gname has non \'$scodon\' stop codons [$mod_date]: Sequence = $orig_seq Stops at $positions)");
      }
      else {
        #$support->log_warning("INTERNAL STOPS EXTERNAL: Transcript $tsi ($tname) from gene $gname has non \'$scodon\' stop codons[$mod_date]:\nSequence = $orig_seq\nStops at $positions)\n\n");
        $log_object->_save_log('log_warning', '', $gsi, 'TRANSCRIPT', $tsi, 'VQCT_internal_stop', "INTERNAL STOPS EXTERNAL: Transcript $tsi ($tname) from gene $gname has non \'$scodon\' stop codons[$mod_date]: Sequence = $orig_seq Stops at $positions)");
      }
    }
    #...yes - check remarks
    else {
      my $flag_remark  = 0; # 1 if word seleno has been used
      my $flag_remark2 = 0; # 1 if existing remark has correct numbering
      my $alabel       = 'Annotation_remark- selenocysteine ';
      my $alabel2      = 'selenocysteine ';
      my $annot_stops;
      my $remarks;
      my $att;
      #get both hidden_remarks and remarks
      foreach my $remark_type ('remark','hidden_remark') {
        if($has_log_object){
          $att=$log_object->species_params->get_attributes->{$trans->stable_id}->{$remark_type};
        }else{
          $att=$trans->get_all_Attributes($remark_type)
        }
        foreach my $attrib ( @$att) {
          push @{$remarks->{$remark_type}}, $attrib->value;
        }
      }
      #parse remarks to check syntax for location of edits
      while (my ($attrib,$remarks)= each %$remarks) {
        foreach my $text (@{$remarks}) {
          if ( ($attrib eq 'remark') && ($text=~/^$alabel(.*)/) ){
            #$support->log_warning("seleno remark for $tsi stored as Annotation_remark not hidden remark) [$mod_date]\n");
            $log_object->_save_log('log_warning', '', $gsi, '', $tsi, 'VQCT_wrong_selC_coord', "seleno remark for $tsi stored as Annotation_remark not hidden remark) [$mod_date]");
            $annot_stops=$1;
          }
          elsif ($text =~ /^$alabel2(.*)/) {
            my $maybe = $1;
            if($maybe =~ /^\s*\d+(\s+\d+)*\s*$/) {
              $annot_stops=$maybe;
            } else {
              $log_object->_save_log('log', '', $gene->stable_id, '', $tsi, '', "Maybe annotated stop in incorrect format, maybe just a remark that happens to begin '$alabel2'".
                                                                                " -- might need to investigate: '$alabel2$maybe' [$mod_date]");
            }
          }
        }
      }

      #check the location of the annotated edits matches actual stops in the sequence
      my @annotated_stops;
      if ($annot_stops){
        my $i = 0;
        foreach my $offset (split(/\s+/, $annot_stops)) {
          #OK if it matches a known stop
          if (
            defined($found_stops[$i]) && defined($found_stops[$i]->[1]) && ($found_stops[$i]->[1] == $offset)) {
            push  @annotated_stops, $offset;
          }
          # catch old annotations where number was in DNA not peptide coordinates
          elsif (defined($found_stops[$i]) && defined($found_stops[$i]->[1]) && (($found_stops[$i]->[1] * 3) == $offset)) {
            $log_object->_save_log('log_warning', '', $gene->stable_id, 'DNA', $tsi, 'VQCT_wrong_selC_coord', "DNA: Annotated stop for transcript tsi ($tname) is in DNA not peptide coordinates) [$mod_date]");
          }
          # catch old annotations where number off by one
          elsif (defined($found_stops[$i]) && defined($found_stops[$i]->[1]) && (($found_stops[$i]->[1]) == $offset+1)) {
            $log_object->_save_log('log_warning', '', $gene->stable_id, 'PEPTIDE', $tsi, 'VQCT_wrong_selC_coord', "PEPTIDE: Annotated stop for transcript $tsi ($tname) is out by one) [$mod_date]");
          }
          elsif (defined($offset)  && ($offset=~/^\d+$/)){
            if ($offset == length($orig_seq)+1) {
              if($seen_transcripts->{$tsi} && $seen_transcripts->{$tsi}->[1] eq 'known-tga-stop') {
                $log_object->_save_log('log', '', $gene->stable_id, 'TRANSCRIPT', $tsi, '', "Annotated stop for transcript $tsi ($tname) known to be a stop codon. Ok. [$mod_date]");
              } elsif($seen_transcripts->{$tsi} && $seen_transcripts->{$tsi}->[1] eq 'known-terminal-sec') {
                $log_object->_save_log('log', '', $gene->stable_id, 'TRANSCRIPT', $tsi, '', "Annotated stop for transcript $tsi ($tname) known to be a terminal Sec. Ok. [$mod_date]");
              } else {
                $log_object->_save_log('log_warning', '', $gene->stable_id, 'TRANSCRIPT', $tsi, '', "Annotated stop for transcript $tsi ($tname) \"$offset\" matches actual stop codon yet has no entry in script config to disambiguate it. Please investigate and add appropriate entry to config arrays in add_selcys.pl. [$mod_date]");
              }
            }
            else {
              $log_object->_save_log('log_warning', '', $gene->stable_id, 'TRANSCRIPT', $tsi, 'VQCT_wrong_selC_coord', "Annotated stop for transcript $tsi ($tname) \"$offset\" does not match a TGA codon) [$mod_date]");
              push  @annotated_stops, $offset;
            }
          }
          $i++;
        }
      }

      #check location of found stops matches annotated ones - any new ones are reported
      foreach my $stop ( @found_stops ) {
        my $pos = $stop->[1];
        my $seq = $stop->[0];
        unless ( grep { $pos == $_} @annotated_stops) {
          if ($seen_transcripts->{$tsi} && $seen_transcripts->{$tsi}->[1] eq 'notsec-havana') {
            #$support->log_verbose("Transcript $tsi ($tname) has potential selenocysteines but has been discounted by annotators:\n\t".$seen_transcripts->{$tsi}.") [$mod_date]\n");
            $log_object->_save_log('log_verbose', '', $gene->stable_id, '', $tsi, 'VQCT_pot_selC', "Transcript $tsi ($tname) has potential selenocysteines but has been discounted by annotators: ".$seen_transcripts->{$tsi}->[0].") [$mod_date]");
          }
          else {
            #$support->log("POTENTIAL SELENO ($seq) in $tsi ($tname, gene $gname) found at $pos [$mod_date]\n");
            $log_object->_save_log('log', '', $gene->stable_id, '', $tsi, 'VQCT_pot_selC', "POTENTIAL SELENO ($seq) in $tsi ($tname, gene $gname) found at $pos [$mod_date]");
          }
        }
      }
    }
  }
}

◆ get_havana_seleno_comments()

public Hashref Bio::EnsEMBL::Utils::VegaCuration::Translation::get_havana_seleno_comments ( )

   Args       : none
   Example    :

my $results = $support->get_havana_seleno_comments

   Description: parses the HEREDOC containing Havana comments in this module
   Returntype : hashref

Code:

click to view

The documentation for this class was generated from the following file:

ensembl/modules/Bio/EnsEMBL/Utils/VegaCuration/Translation.pm

Public Member Functions

Detailed Description

Synopsis

Description

Member Function Documentation

◆ _save_log()

◆ check_CDS_start_end_remarks()

◆ check_CDS_start_end_remarks_loutre()

◆ check_for_stops()

◆ get_havana_seleno_comments()
